Model Number : H81 B8H-V2.6-H

Supply Ability : 10000pcs/Day

Delivery Time : 5-8 working Days

Packaging Details : Carton box

Model Name : H81 B8H-V2.6

CPU : Support for Core i7/i5/i3/Pentium/Celeron LGA1150 pin series processors.

PCIE : 2 PCs (1 PCIE x16, 1 PCIE x1)

TPM supported : yes

Display interface : 1 VGA+1 HDMI

systems : WIN11/Win7 and Win10 32/64 bit operating systems.

Physical size : 170 mm x 221 mm

MQO : 20

Contact Now

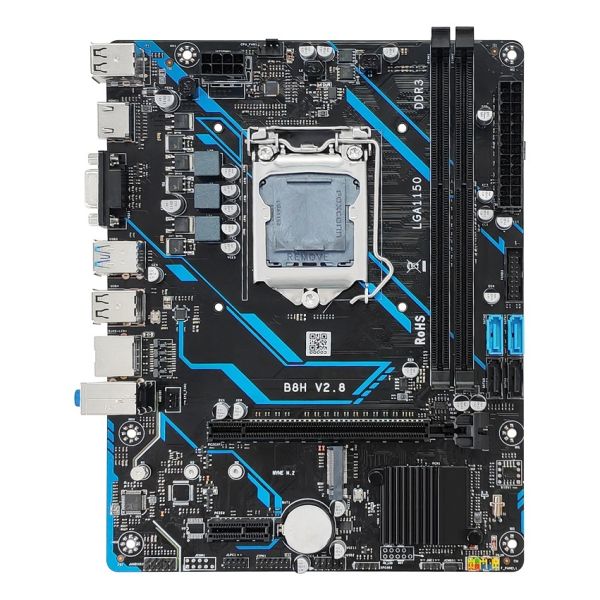

Computer motherboard lga1150 TPM supported ddr3 mainboard

Features (product features)

▲ Support for Core i7/i5/i3/Pentium/Celeron LGA1150 pin series processors.

▲ Support 4 SATA interfaces and 10 USB interfaces.

▲ Support technology high-speed DDR3 dual-channel memory slot: support 1066/1333/1600MHz, with a maximum capacity of 16G memory.

▲ Supports 5.1-channel ALC897 chip.

▲ The transmission speed of high-speed USB3.0 interface is improved again.

▲ Support for PCIE expansion slots *2

▲RJ45 Gigabit NIC interface

TPM supported

▲ Support Win7 and Win10 32/64 bit operating systems.

processor	LGA1150 Core i7/i5/i3/Pentium/Celeron
Southbridge	Intel H81 Chipset series
memory	technology	Dual channel DDR3 1066/1333/1600MHz
	maximum capacity	16GB
	Memory slot	2 * 240 PIN DDR3
Post I/O	Display interface	1 VGA；; 1 HDMI
	USB port	2 USB 3.0；; 4 USB 2.0
	Ethernet	1 Realtek Gigabit NIC
	Audio	1 (Mic-in, Line-out, Line-in)
Internal connector	USB 2.0	2 (one JUSB can switch out two USB 2.0 interfaces)
	USB 3.0	2 (one JUSB can switch out two USB 3.0 interfaces)
	PCIE	2 PCs (1 PCIE x16, 1 PCIE x1)
	ATXPWR interface	1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket
	Audio	1 x 2x5Pin pin
	serial ata	4 SATA interfaces (2 SATA3.0,2 SATA2.0)
	JLPC	1 x 2x5Pin pin TPM supported
	FAN	2 (1 CPU_FAN,1 SYS_FAN)
Physical size	measure	170 mm x 221 mm
